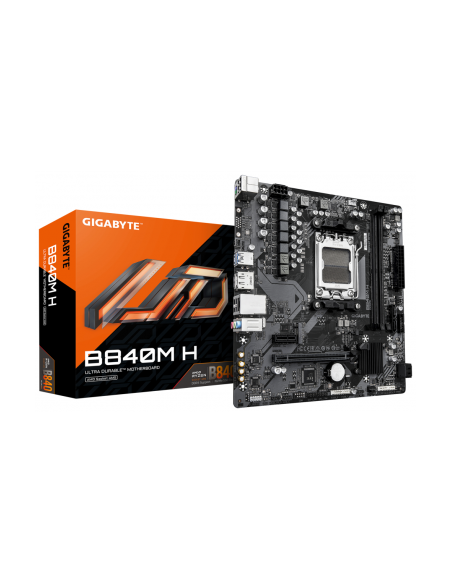

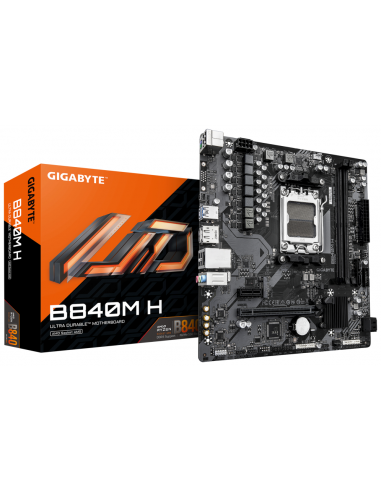

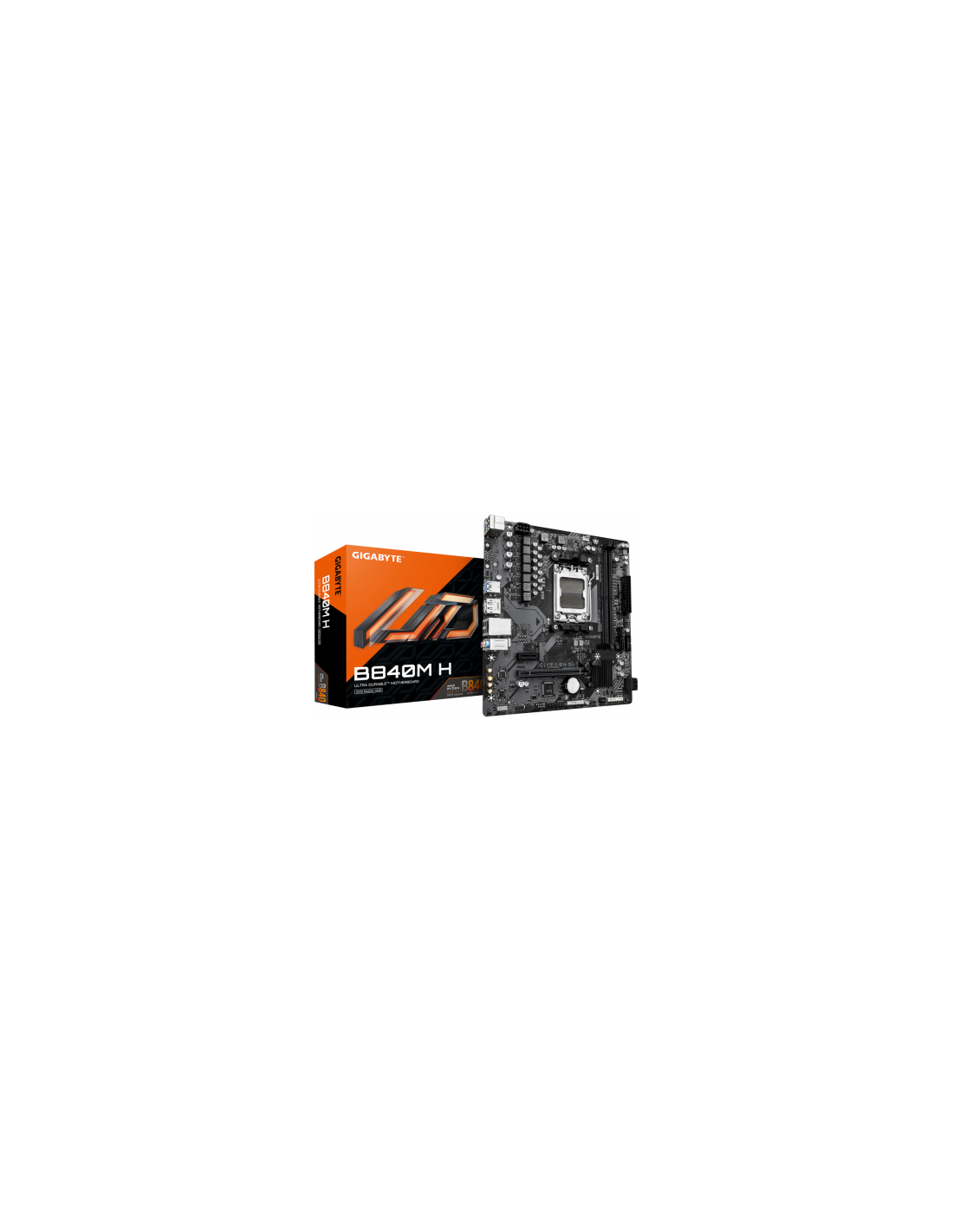

Gigabyte B840M H Socket AM5 DDR5

Procesador

• AMD Socket AM5
• AMD Ryzen™ 9000 / 8000 / 7000 Series

Chipset

• AMD B840

Memoria

• Support for DDR5 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot, integrated in the CPU:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Gráficos

• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Almacenamiento

• 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• 2 x USB 3.2 Gen 1 ports on the back panel
• 1 x USB 2.0/1.1 port on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Conectividad y redes

• Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
• 1 x reset jumper
• 1 x Clear CMOS jumper

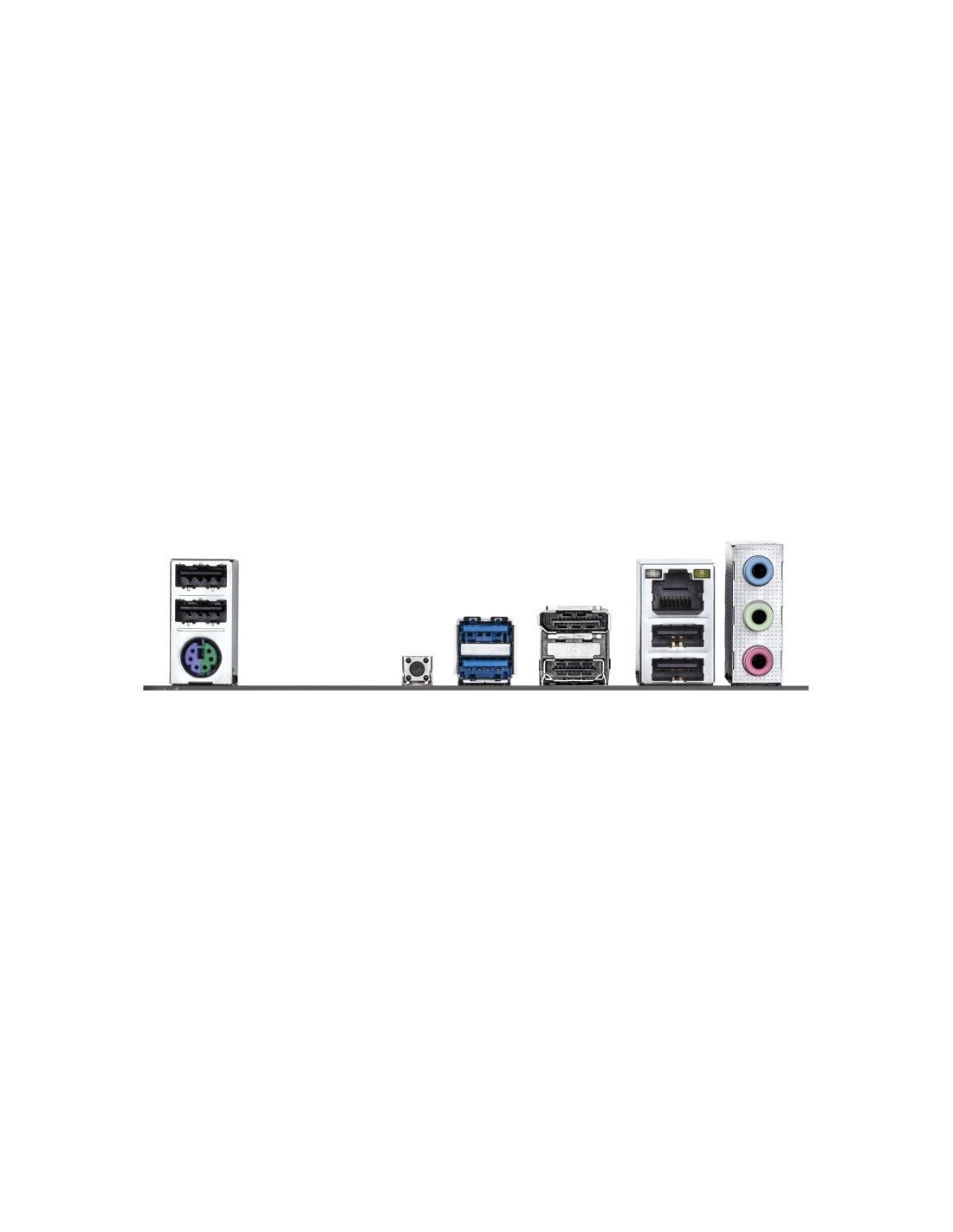

Conectores Traseros

• 4 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x Q-Flash Plus button
• 2 x USB 3.2 Gen 1 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x RJ-45 port
• 3 x audio jacks

Factor de forma

• Micro-ATX (23.0 x 22.5cm)
